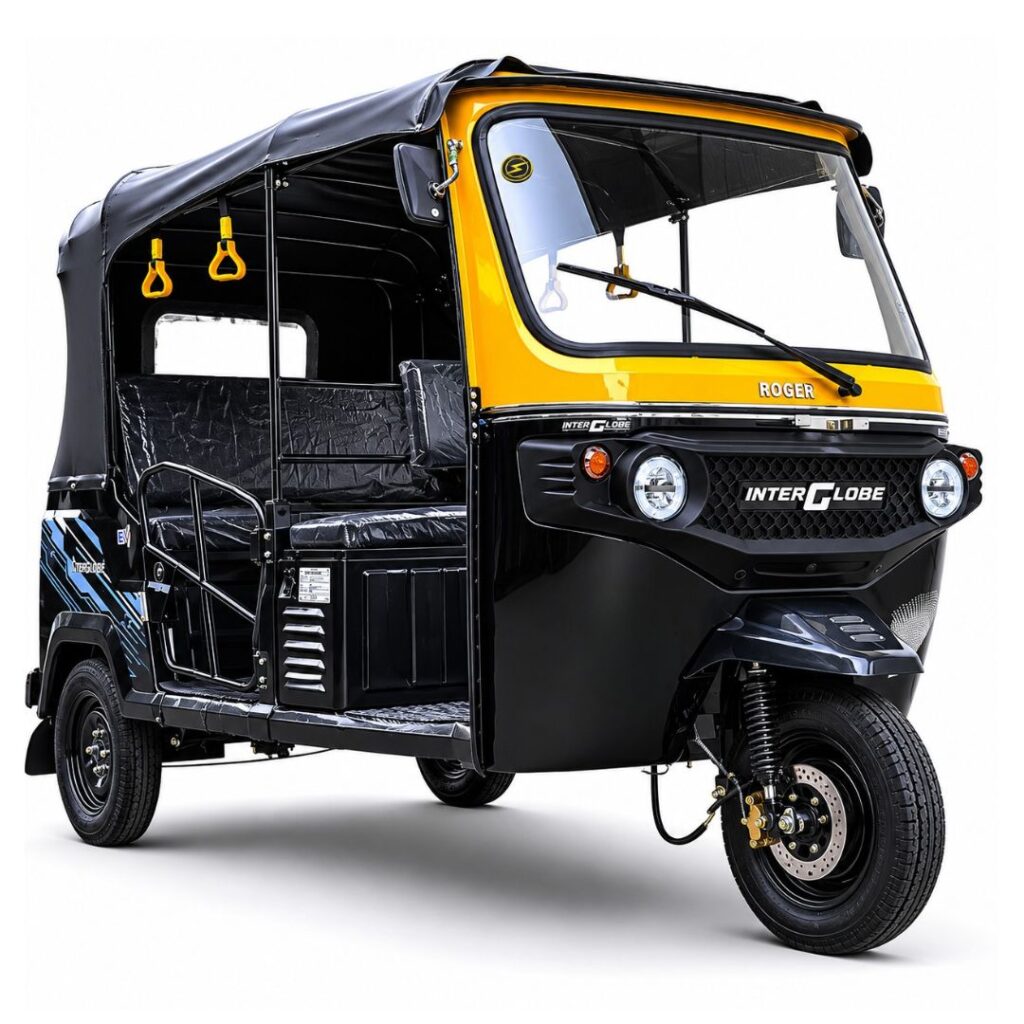

45 DEGREE LOOK
The company believes in designing its products with complete perfection and keeping its customer’s needs in mind.

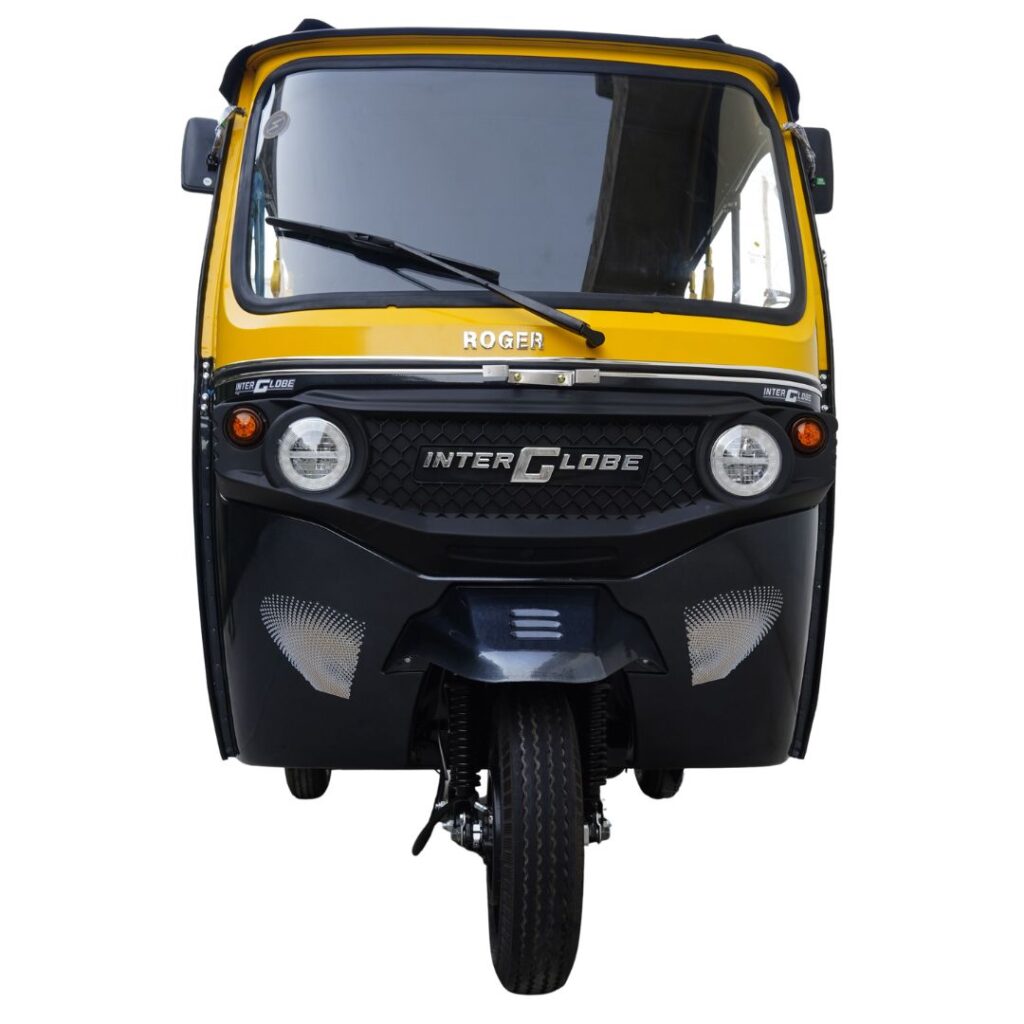

FRONT LOOK
Our E-vehicles which are unique in technology and deliver high product reliability for Indian road conditions.

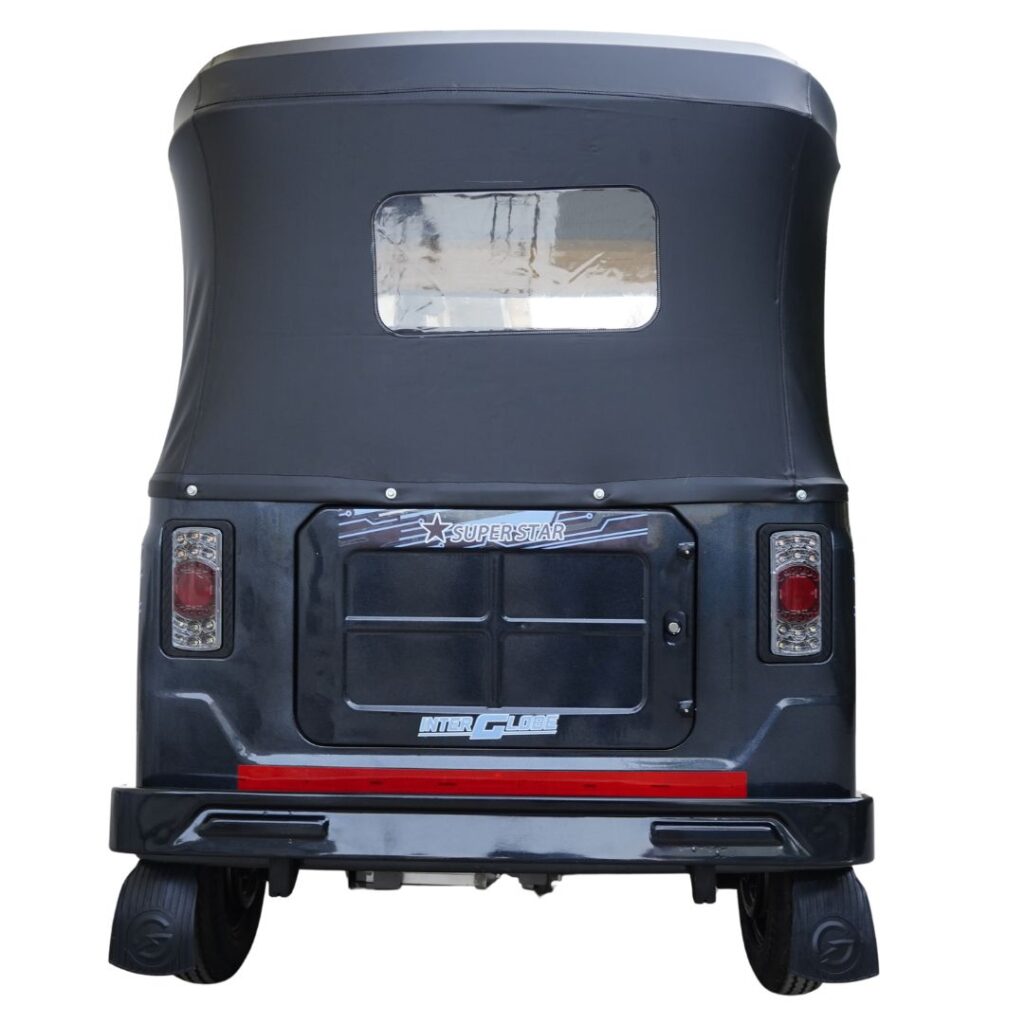

BACK LOOK
As technology advances, we integrate cutting-edge features, making our E-Rickshaws smarter, safer, and more comfortable for everyone.

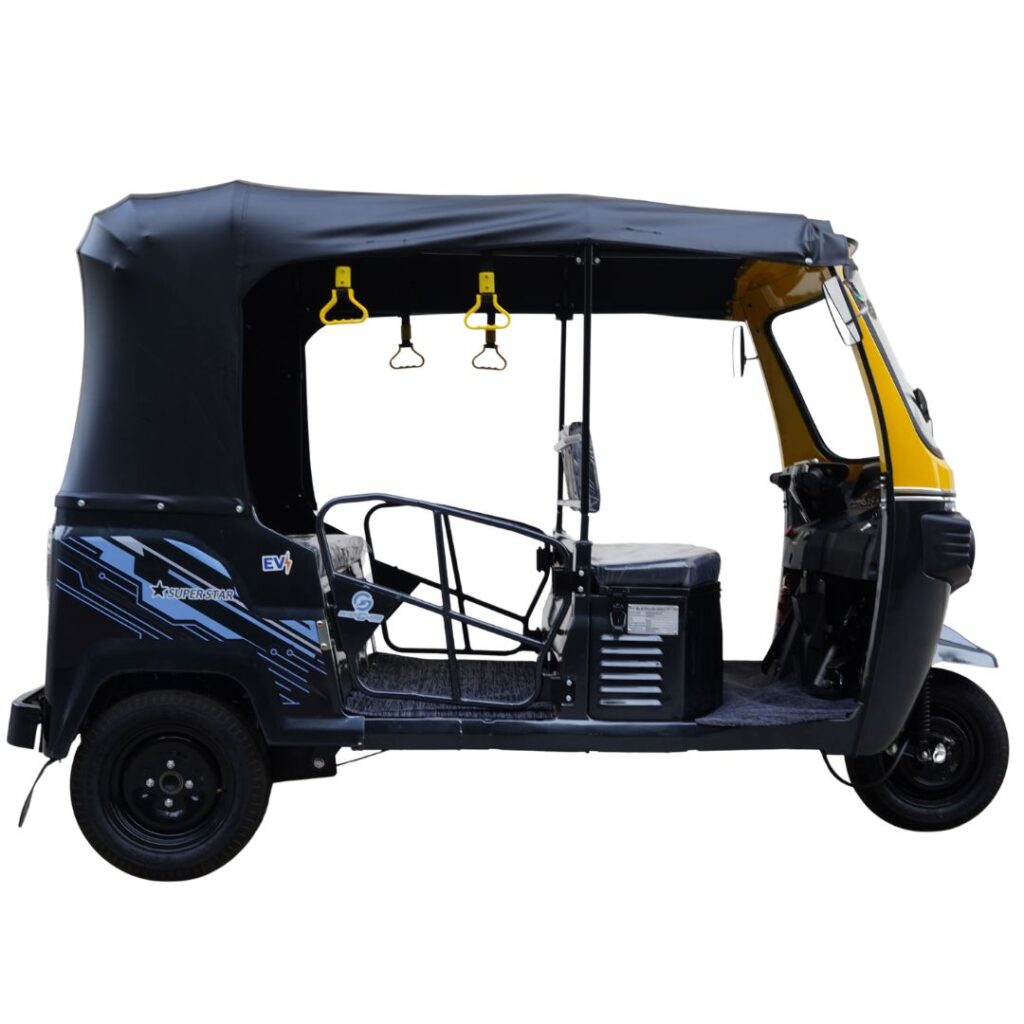

SIDE LOOK
Interglobe aim is to make EVs more affordable, reliable, and perfect alternatives to ICE.
Specifications
Vehicle Data
vehicle weight with 150 Ah 510Kg
vehicle weight with 135 Ah 488Kg
Motor
1200 Watt 60V PMSM Technology
Torque max 350 Nm
Efficiency : 88%
Controller
Sine wave Mosfet 502T /120 Amp
Capacitors 80V/1000uf
Water proof connectors
Chassis
Weight 64 Kgs
Pipe CRCA ERW- 2 grade
High Tensile 410
Alloy Wheel
Weight 2.850 kg
Material A356
Break Load 7500 Kn
Wire Harness
Flexible & fire retardant
Insulation grade FLRYB 120 degree
Differential
35" wider wheel base Axle dia 30mm
Big Bearing for heavy load 2RS 6206
Breaking
160mm drum with twin bearing support
Front Suspension
Japnese Technology ( MSL Make )
High Damping force
Hydrolic oil based
Load 600kgf
Converter
Current Rating 20 Amps
Smart Display
voltage / Speed / Km
Fault display : Motor /
Controller/ break/ throttle
Indicators F & R
Front Led + DRL Rear Led
Head Light
HTL 2105 Bulb 12V35W/ DRL lED
Horn
Dia 90 , v 9-14.5 , 100-115 DB
Tyre
Size 3.75*12 66b 4PR Make CEAT /TVS
Rear Suspension
Material sup9, 5 strips leaf spring
Mounted on silent bush
Load 750kgf
Painting
Epoxy Primer / tsa top coat
Nss life 500 hrs
UV life 300 hrs
Mileage Testing Data
140Ah @C20 : 4+1 loading : 170 Km* / Charge
150Ah @C20 : 4+1 loading : 200 Km* / Charge
