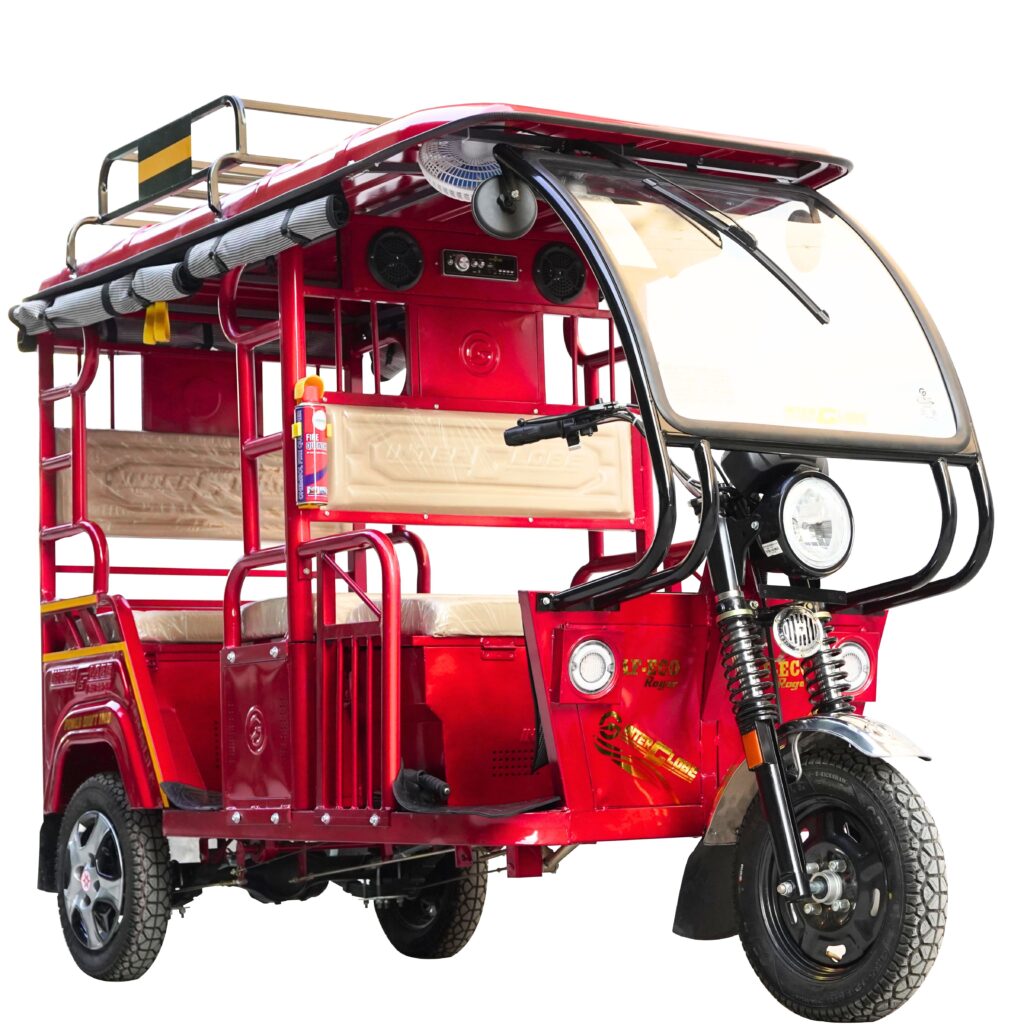

45 DEGREE LOOK
Innovation is at the heart of our E-Rickshaw brand. We invest in research and development to constantly improve our vehicles’ performance, battery life, and design.

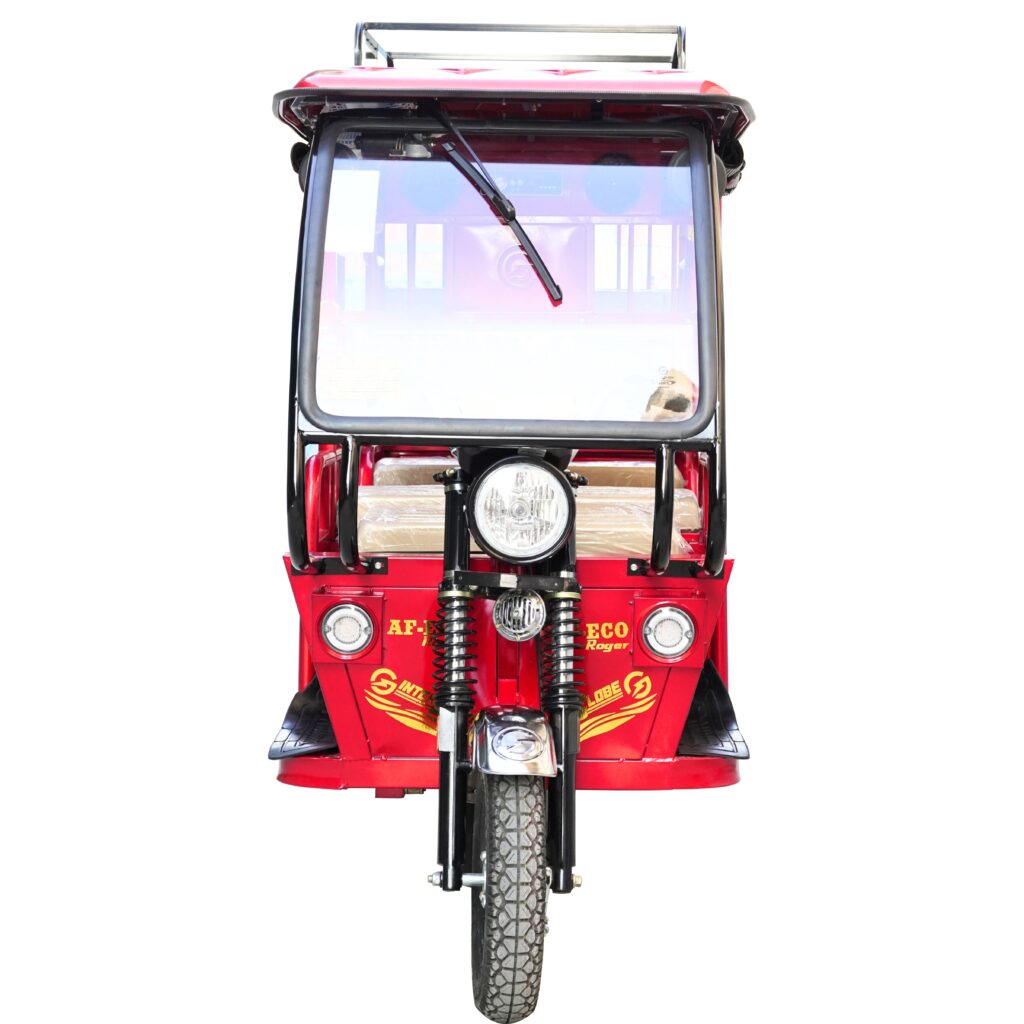

FRONT LOOK
Interglobe E-rickshaw is one of the top brands that provide Eco-friendly transportation and small product processing services throughout India.

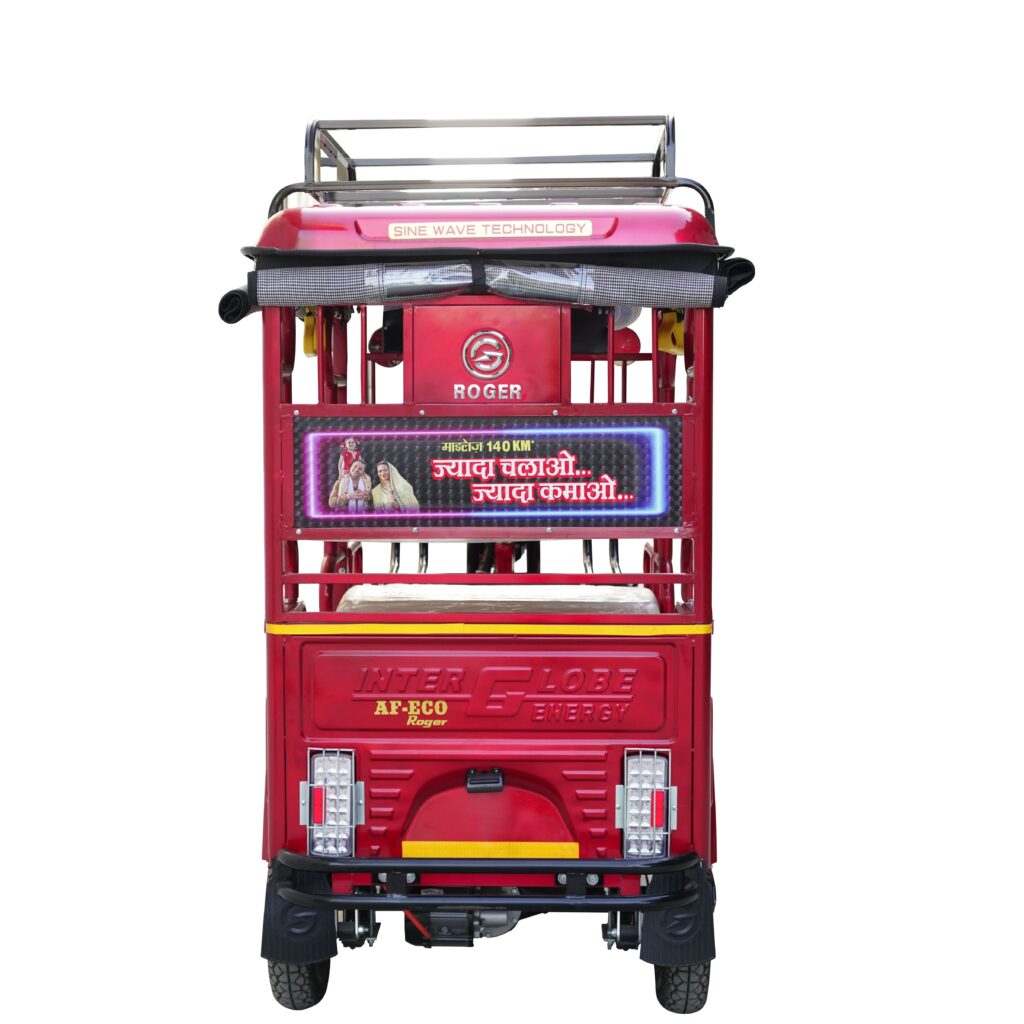

BACK LOOK
The E-rickshaws are engineered with precision, ensuring a secure and enjoyable ride

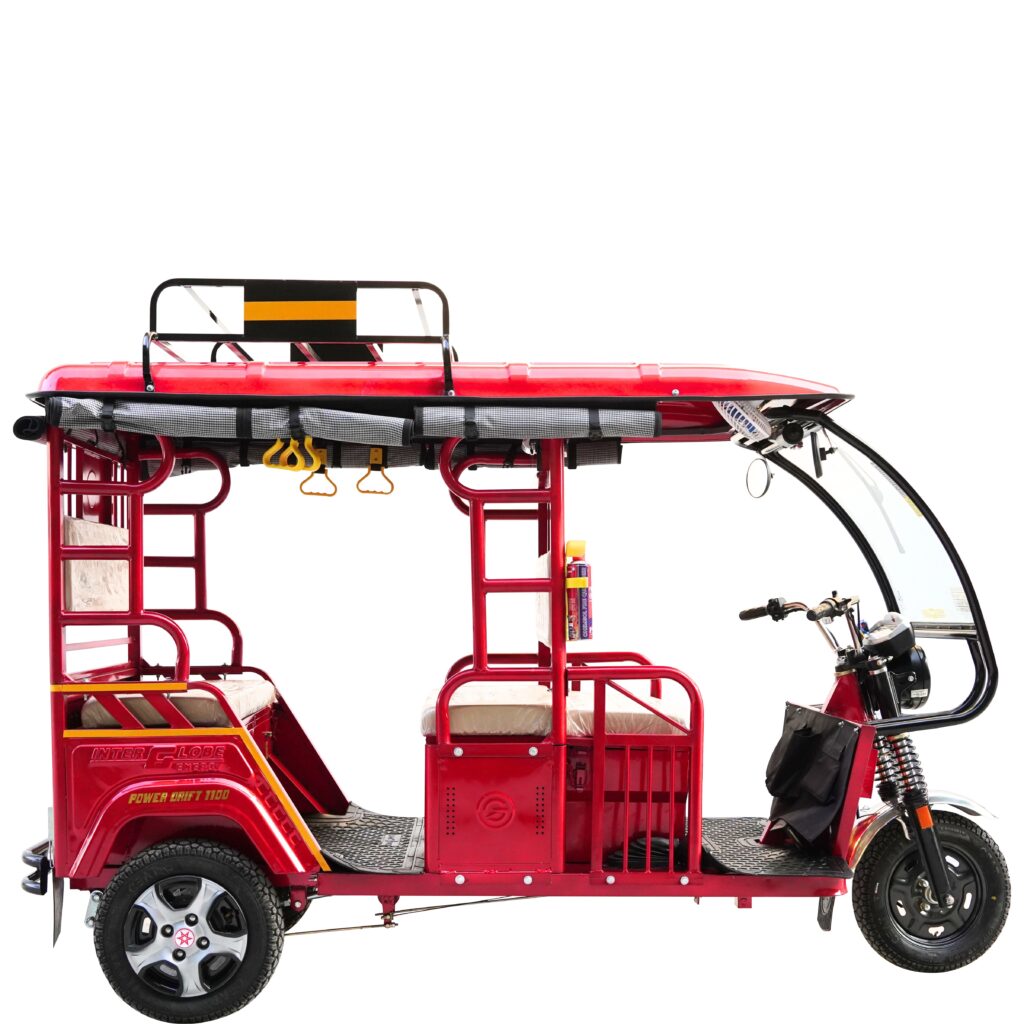

SIDE LOOK
INTERGLOBE E Rickshaw has successfully bridged the gap between style and sustainability, inspiring other manufacturers to follow suit.
Specifications
Vehicle Data
vehicle weight with 150 Ah 460Kg
vehicle weight with 135 Ah 445Kg
Motor
1100 Watt 48V PMSM Technolog
Torque max 300 Nm
Efficiency : 88%
Controller
Sine wave Mosfet 502T /120 Amp
Capacitors 80V/1000uf
Water proof connectors
Chassis
Weight 64 Kgs
Pipe CRCA ERW- 2 grade
High Tensile 410
Steel Wheel
Weight 3.200 kg
Size 2.15*12
Design Load 225 Kn
Wire Harness
Flexible & fire retardant
Insulation grade FLRYB 120 degree
Differential
35" wider wheel base Axle dia 30mm
Big Bearing for heavy load 2RS 6206
Breaking
160mm drum with twin bearing support
Front Suspension
High Damping force
Hydrolic oil based
Load 550kgf
Converter
Current Rating 20 Amps
Smart Display
voltage / Speed / Km
Fault display : Motor /
Controller/ break/ throttle
Indicators F & R
Front Led + DRL Rear Led
Head Light
HTL 2105 Bulb 12V35W/ DRL lED
Horn
Dia 90 , v 9-14.5 , 100-115 DB
Tyre
Size 3.75*12 66b 4PR Make CEAT /TVS
Rear Suspension
Material sup9, 5 strips leaf spring
Mounted on silent bush
Load 750kgf
Painting
Epoxy Primer / tsa top coat
Nss life 500 hrs
UV life 300 hrs
Mileage Testing Data
140Ah @C20 : 4+1 loading : 140 Km* / Charge
150Ah @C20 : 4+1 loading : 160 Km* / Charge
